Main Features - Suite for different kinds of liquid food,such as Yogurt,Milk,Juice ,etc.
- Easy to operate and clean
- Good energy saving
Specifications | Model | 100L | 150L | 200L | 300L | 500L | 1000L |
| Tank Inner Dia | 630mm | 630mm | 630mm | 850mm | 900mm | 1200mm |
| Tank Outer Dia. | 740mm | 740mm | 740mm | 950mm | 1000mm | 1300mm |
| Tank Inner Height | 400mm | 600mm | 670mm | 750mm | 850mm | 900mm |
| Capacity | 100L/Batch | 150L/Batch | 200L/Batch | 300L/Batch | 500L/Batch | 1000L/Batch |
| Sterile Temp. | 45-90degree
(adjustable) | 45-90degree
(adjustable) | 45-90degree
(adjustable) | 45-90degree
(adjustable) | 45-90degree
(adjustable) | 45-90degree
(adjustable) |
| Power | 380V 9KW/220V 6KW | 380V 9KW | 380V 9KW | 380V 12KW | 380V 24KW | 380V 48KW |
| Outer Size | 800*750*1230mm | 800*750*1430mm | 800*750*1530mm | 1000*1100*1650mm | 1300*1100*1850mm | 1600*1400*2200mm |
| Weight | 100kg | 150kg | 180kg | 220kg | 270kg | 400kg |

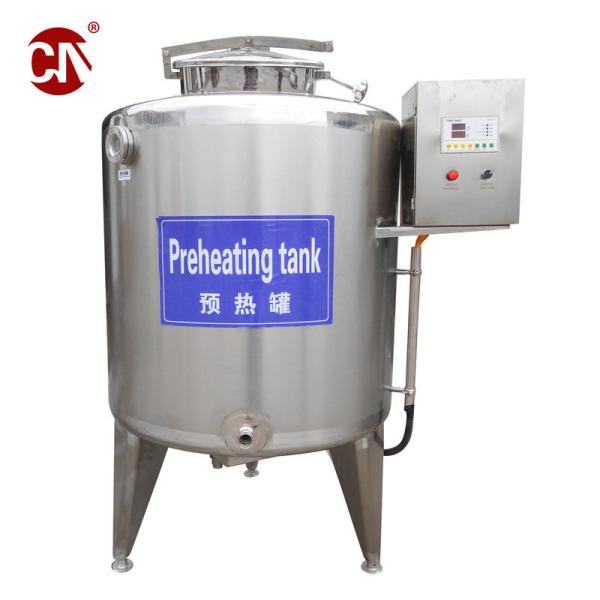

1. Basic working principle of preheating tank
A preheating tank is an industrial device that has the function of heating liquid or gaseous substances to a certain temperature and maintaining it for a period of time. The basic principle is to use a heater to heat the medium to a set temperature, and then put it into a preheating tank for heating and maintenance. During the heating and holding process, the medium temperature remains unchanged until the medium temperature in the preheating tank reaches the requirement before proceeding to the next process operation.
2. Structural composition of preheating tank
The preheating tank is mainly composed of tank body, jacket, heater, temperature control system, temperature sensor and discharge port. Among them, the tank is cylindrical or conical, the jacket is used to heat the medium, the heater is an electric heater or a steam heater, used to heat the medium to a set temperature, and the temperature control system controls the temperature by controlling the heater. The temperature sensor is used for temperature detection. In addition, the preheating tank is also equipped with a discharge port for discharging the treated media.
3. Work flow of preheating tank
The working process of the preheating tank can be divided into two stages: heating stage and holding stage. During the heating stage, the heater heats the medium to the set temperature. After the medium enters the preheating tank, it remains heated until the set holding time is reached. In the holding stage, the medium in the preheating tank will be maintained for a period of time to reach the required temperature before proceeding to the next process operation.
4. Application areas of preheating tanks
Preheating tanks have a wide range of applications in industrial production, mainly including the following aspects:
1. Food processing field. Use preheating tanks to heat, sterilize, and keep warm and fresh-keeping liquid foods, such as milk, juice, etc.
2. Chemical industry field. Used for medium heating and maintenance in organic chemical reactions, such as mass transfer of hydrocarbon substances and decomposition reactions of hydrocarbon molecules.
3. Pharmaceutical industry field. Preheating tanks are used to heat and preserve pharmaceutical raw materials, such as biochemical preparations, proprietary Chinese medicines, etc.
4. Oil and fat industry. Use a preheating tank to heat and keep liquid fat or oil, such as olive oil, peanut oil, etc.
